Obturation Device

Case Study: Obturation Device

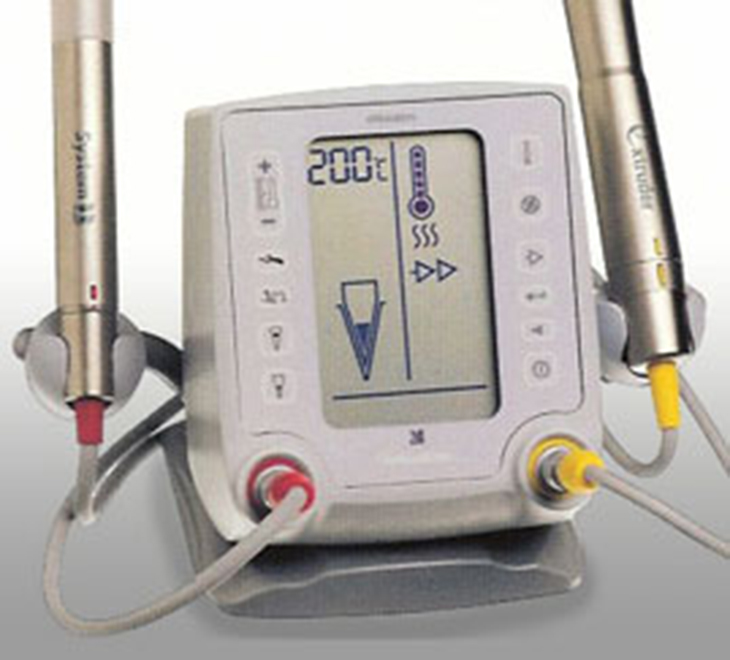

Obturation Device used by endodontists during root canal procedures.

Obturation Device

Working closely with our client’s mechanical and industrial design teams, Pentad Design developed the hardware and firmware for an obturation device used by endodontists during root canal procedures.

The Dental Device synthesizes complex stimulus output waveforms, synchronously alt tagreads back the response waveform then rapidly executes customized algorithms to present a real-time display. The DSP also handles keyboard scanning, CAN bus, LCD panel, timers, power management, audio output, user Interface, and communication with a PC.

Embedded Software/Firmware Design Services

Pentad Design develops creative embedded software solutions for clients in the medical, aerospace, industrial, and consumer electronics industries. Our engineers have many years of experience and our hardware and software teams collaborate early in the development process to create an integrated design to meet your strategic objectives.

We can quickly develop your product to the prototype stage or take it all the way to the final manufacturing stage inclusive of any test development that may be needed along the way.

Our background and experience with many diverse industries enable us to work within your quality system requirements.

Please see below for a more complete list of our Design Services and Embedded Capabilities.

Embedded Software/Firmware Design Services

• Requirements Capture

• FPGA Design (VHDL and Verilog)

• Verification

• Validation

• Algorithm Development

• Review of existing designs

• Code Maintenance

• Independent Review

• Timing Analysis

• Static Analysis

• Test, Measurement & Data Collection

Embedded Software/Firmware Expertise

• FPGA Design (VHDL and Verilog)

• Low Power and Battery Operated Devices

• Bootloaders (In-Field firmware update)

• Math Libraries – Integer and Floating Point

• Motor Control – Brushless, Field Oriented Control (FOC)

• Digital Power

• Digital Signal Processing, Filters and Fast Fourier & discrete Transforms (FFT)

• Frequency Response analysis

• Control Systems

• Real Time Operating Systems (RTOS) – Off the Shelf and Custom Solutions(Preemptive Multitasking)

• Mobile Development - Android

• Wireless – RFID, ANT, Bluetooth, Low Energy, Bluetooth Smart, ProprietaryWireless

• Graphical User Interface (GUI)

• Custom JTAG solutions

• Serial and Network protocols – USART, SPI, I2C, 1-Wire, Parallel bus, USB, Controller area network (CANBus), SMBus/PMBus

• Ethernet Solutions – TCP/IP Client & Server, 5, 6, 9, 10 Embedded Web Pages

• PC Test Applications and Manufacturing Tools

• Legacy Languages

If you don’t see your service need listed, please contact us at info@pentaddesign.com or call our project management team at (714) 259-0125.
